L075 Accouplement à mâchoires flexibles en caoutchouc à grande élasticité Conforme à la norme EN 61000
Lieu d'origine:Chine
Nom de la marque:Purple Horn
Attestation:CE、ISO
Numéro de modèle:L075
Quantité minimum de commande:1
Détails de produit
Applicable Industries:
Usine, ateliers de réparations de machines
Flexible Or Rigid:
Flexible
Standard Or Nonstandard:
Norme
Size::
L035 L050 L070 L075 L090 L095 L099 L100 L110 L150 L190 L225
Surface Treatment:
Oxyde noir
L Element Material:
NBR
Temperature:
-40~100℃
MOQ:
1 ensemble
PACKING:
Caisse de contreplaqué ou comme besoin de client
Standard Bore:
9mm
Max Bore:
25mm
Max Bore Inch:
1"
Length:
55mm
DIA:
45mm
Weight:
0.40Kg
Torque:
10nm
Speed:
10.000rpm
Description de produit

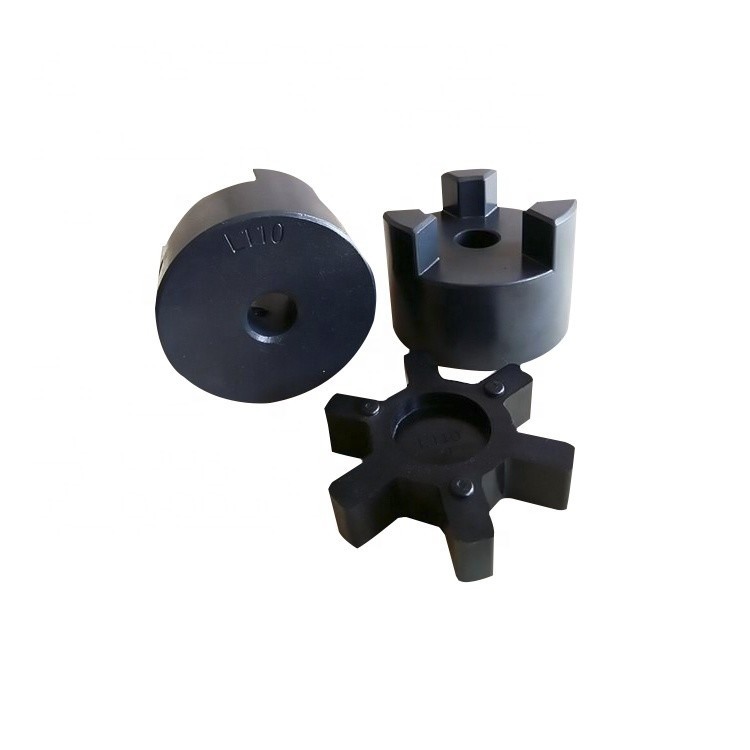

Accouplement en caoutchouc d'araignée de l'élasticité L075 élevée
Description de produit
Les caractéristiques de L ont courbé l'accouplement de mâchoire :
1.Easy d'inspection, entretien facile
2.Can absorbent les désalignements de vibration, de parallèle, angulaires et axiaux
charateristics de rotation dans le sens horaire et en sens inverse des aiguilles d'une montre de 3.Identical
4.Both finit le matériel est fer, intermédiaire pour les matériaux en caoutchouc
5.Simple configuration, type de vis de réglage, petit prix
6.Hole peut être auto-traitement, facile facilite
moteur d'étape 7.For, vis, système de positionnement de machine
|
Lovejoy L standard type paramètres et données de accouplement d'araignée de mâchoire :
| Taille | Type | Trou standard | Ennuyez métrique | Pouce de trou | Dimensions | Torgue | Vitesse de rotation T/MN | La masse kilogramme | ||||||
| Minute | Maximum | Minute | Maximum | B | C | D | E | nanomètre nécessaire | ||||||
| L035 | 1 | 3 | 3 | 8 | 1/8" | 3/8" | 16 | 20,2 | 7,8 | 6,6 | - | 0,5 | 30,000 | 0,03 |
| L050 | 1 | 6 | 5 | 15 | 3/16" | 5/8" | 28 | 43 | 12 | 15,6 | - | 3 | 17,000 | 0,13 |
| L070 | 1 | 9 | 7 | 19 | 3/16" | 3/4" | 35 | 50,7 | 12,7 | 19 | - | 5 | 13,000 | 0,24 |
| L075 | 1 | 9 | 9 | 25 | 3/16" | 1" | 45 | 55 | 12,7 | 21 | - | 10 | 10,000 | 0,40 |
| L090 | 1 | 9 | 9 | 28 | 3/16" | 1 1/8" | 54 | 55 | 12,7 | 21 | - | 16 | 9,000 | 0,68 |
| L095 | 1 | 9 | 9 | 28 | 3/8" | 1 1/8" | 54 | 64 | 12,7 | 25,5 | - | 22 | 9,000 | 0,71 |
| L099 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 72,5 | 19 | 27 | - | 45 | 7,000 | 1,22 |
| L100 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 88,5 | 19 | 35 | - | 50 | 7,000 | 1,40 |
| L110 | 1 | 15 | 15 | 48 | 1/2 » | 1 7/8" | 84 | 108 | 22 | 43 | - | 90 | 5,000 | 3,00 |
| L150 | 1 | 15 | 15 | 48 | 5/8" | 1 7/8" | 96 | 115,4 | 25,4 | 45 | - | 150 | 5,000 | 5,00 |
| L190 | 2 | 19 | 19 | 55 | 5/8" | 2 1/4" | 115 | 133,4 | 25,4 | 54 | 102 | 200 | 4,200 | 7,60 |
| L225 | 2 | 19 | 19 | 65 | 3/4" | 2 5/8" | 127 | 153,4 | 26,4 | 64 | 108 | 300 | 4,200 | 9,00 |
