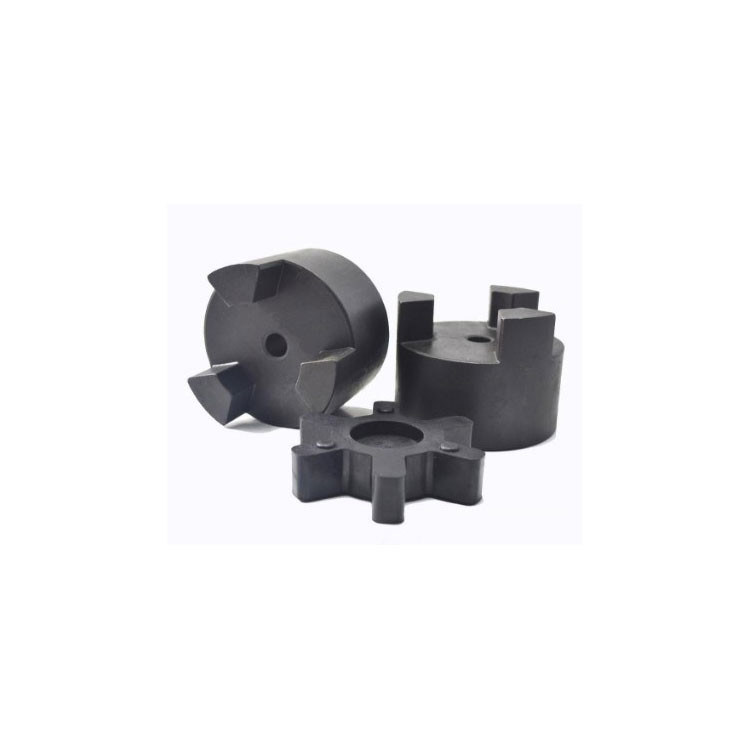

Arbre araignée L150 3D L150 Flexible araignée thermiquement optimisé certifié CCC
Lieu d'origine:Chine
Nom de la marque:Purple Horn
Attestation:CE、ISO
Numéro de modèle:L150
Quantité minimum de commande:2 ensembles
Détails de produit
Applicable Industries:
Usine, ateliers de réparations de machines, travaux de construction, Energy & Mining, Advertizing Co
Structure:
Mâchoire/araignée
Flexible Or Rigid:
Flexible
Standard Or Nonstandard:
Norme
Standard Bore:
15mm
Max Bore:
48mm
Max Bore Inch:
1-7/8 »
Rotational Speed:
5.000rpm
Mass:
5kg
Material Of L Element:
NBR
Temperature:
-40~100℃
Product Name:
L type accouplement d'araignée de mâchoire
Description de produit
Accouplement d'arbres flexible de l'araignée L150 pour l'imprimante 3D
Description de produit
Caractéristiques de Lovejoy L standard type accouplement d'araignée de mâchoire :
1.Economical et utilisation pratique
2.Easy retirant
construction 3.Simple et poids léger
4.NBR en caoutchouc avec l'excellents pétrole et drogues de résistance
5. l'espace minimum
lubrification 6.No
7.Temperature : - 40~100℃
Lovejoy L standard type paramètres et données de accouplement d'araignée de mâchoire :
| Taille | Type | Trou standard | Ennuyez métrique | Pouce de trou | Dimensions | Torgue | Vitesse de rotation T/MN | La masse kilogramme | ||||||
| Minute | Maximum | Minute | Maximum | B | C | D | E | nanomètre nécessaire | ||||||
| L035 | 1 | 3 | 3 | 8 | 1/8" | 3/8" | 16 | 20,2 | 7,8 | 6,6 | - | 0,5 | 30,000 | 0,03 |
| L050 | 1 | 6 | 5 | 15 | 3/16" | 5/8" | 28 | 43 | 12 | 15,6 | - | 3 | 17,000 | 0,13 |
| L070 | 1 | 9 | 7 | 19 | 3/16" | 3/4" | 35 | 50,7 | 12,7 | 19 | - | 5 | 13,000 | 0,24 |
| L075 | 1 | 9 | 9 | 25 | 3/16" | 1" | 45 | 55 | 12,7 | 21 | - | 10 | 10,000 | 0,40 |
| L090 | 1 | 9 | 9 | 28 | 3/16" | 1 1/8" | 54 | 55 | 12,7 | 21 | - | 16 | 9,000 | 0,68 |
| L095 | 1 | 9 | 9 | 28 | 3/8" | 1 1/8" | 54 | 64 | 12,7 | 25,5 | - | 22 | 9,000 | 0,71 |
| L099 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 72,5 | 19 | 27 | - | 45 | 7,000 | 1,22 |
| L100 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 88,5 | 19 | 35 | - | 50 | 7,000 | 1,40 |
| L110 | 1 | 15 | 15 | 48 | 1/2 » | 1 7/8" | 84 | 108 | 22 | 43 | - | 90 | 5,000 | 3,00 |
| L150 | 1 | 15 | 15 | 48 | 5/8" | 1 7/8" | 96 | 115,4 | 25,4 | 45 | - | 150 | 5,000 | 5,00 |
| L190 | 2 | 19 | 19 | 55 | 5/8" | 2 1/4" | 115 | 133,4 | 25,4 | 54 | 102 | 200 | 4,200 | 7,60 |
| L225 | 2 | 19 | 19 | 65 | 3/4" | 2 5/8" | 127 | 153,4 | 26,4 | 64 | 108 | 300 | 4,200 | 9,00 |
L'information de l'entreprise
Plus de scénarios d'application, svp nous contactent.
